FULL DESCRIPTION
FEATURES

• Delivers 2 x 1500 watts into 2 ohms, 2 x 900 watts into 4 ohms or 3000 watts into 4 ohms (bridged)
• Cool-running high-density Class-D technology with ''near-zero'' thermal buildup
• Ultra-efficient switch-mode power supply ensures noise-free audio with superior transient response and low power consumption
• Built-in stereo crossover with low-cut, high-cut and full range modes
• SmartSense loudspeaker impedance compensation for linear frequency response at any speaker load impedance
• ''Zero-Attack'' limiters offer maximum output level and reliable overload protection
• Detented and illuminated gain controls for precise level setting
• Precise 4-segment Signal and Limit LEDs
• XLR and 1/4'' TRS combo input connectors
• Professional twist-lock speaker connectors
• Independent DC, LF and thermal overload protection on each channel
• ''Back-to-front'' ventilation design prevents thermal buildup
• Designed and engineered in Germany

SPECIFICATIONS
Maximum Output Power
Stereo/4-Channel:

• 2 Ohms Per Channel, Stereo: 2 x 1500W
• 4 Ohms Per Channel, Stereo: 2 x 900W
• 8 Ohms Per Channel, Stereo: 2 x 440W

Bridge Connection:

• 4 Ohms: 3000W
• 8 Ohms: 1500W

General
Controls: Power Switch, 2x Gain, Mode Switch, Crossover Switch
Indicators: Power (Amber ED)
Input Sensitivity for Rated Power into 4 Ohms: 0.775V (0dBu)
Inputs: 2 x Combo Jacks
Input Impedance: 10 kOhms Unbalanced, 20 kOhms Balanced
Outputs: 2 x lLcking-Style Professional Speaker Connectors
Output Circuit Type: Class D
Distortion: Less Than 0.05 Percent
Frequency Response: 20 Hz to 20 kHz, +0 / -1 dB
Damping Factor: More Than 145 at 8 Ohms
Signal-to-Noise: More Than 100 dB
Circuit Protection
Cooling: Continuously Variable Speed Fan, Back-to-Front Air Flow
Amplifier Protection: Thermal and DC Protection, Stable into Reactive or Mismatched Loads
Load Protection: On/Off Muting, DC-Fault Power Supply Shutdown
Dimensions
Rack Spaces: 2U

  Manual

Products with the "Behringer" brand have a 2-years warranty.
Products with the brand "PIP Audio" have a 2-years warranty.
Products with the brand "PIP Light" have a 2-years warranty.

Products with the brand "Turbosound" have a 2-years warranty.
Products with the brand "Topp Pro Professional Audio" have a 2-years warranty.
Products with the brand "Truss" have a 2-years warranty.

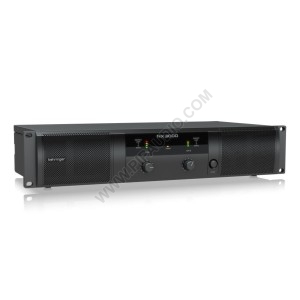

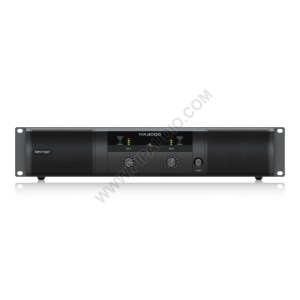

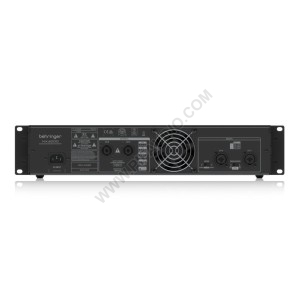

Behringer NX3000 Power Amplifier

SPECIFICATIONS
Maximum Output Power
Stereo/4-Channel:

• 2 Ohms Per Channel, Stereo: 2 x 1500W
• 4 Ohms Per Channel, Stereo: 2 x 900W
• 8 Ohms Per Channel, Stereo: 2 x 440W

Bridge Connection:

• 4 Ohms: 3000W
• 8 Ohms: 1500W

General
Controls: Power Switch, 2x Gain, Mode Switch, Crossover Switch
Indicators: Power (Amber ED)
Input Sensitivity for Rated Power into 4 Ohms: 0.775V (0dBu)
Inputs: 2 x Combo Jacks
Input Impedance: 10 kOhms Unbalanced, 20 kOhms Balanced
Outputs: 2 x lLcking-Style Professional Speaker Connectors
Output Circuit Type: Class D
Distortion: Less Than 0.05 Percent
Frequency Response: 20 Hz to 20 kHz, +0 / -1 dB
Damping Factor: More Than 145 at 8 Ohms
Signal-to-Noise: More Than 100 dB
Circuit Protection
Coooling: Continuously Variable Speed Fan, Back-to-Front Air Flow
Amplifier Protection: Thermal and DC Protection, Stable into Reactive or Mismatched Loads
Load Protection: On/Off Muting, DC-Fault Power Supply Shutdown
Dimensions
Rack Spaces: 2U
